New Arrival 4 Pallet Vacuum Pre Cooler

Short Description:


  • Model: HXV-4P
  • Processing capacity/batch: 2000~2500kgs
  • Internal vacuum chamber size: 1.4x5.2x2.2m, 16.02m³ volume
  • Material: carbon steel or stainless steel
  • Door: hydraulic or sliding
  • Refrigerant gas: R404a, R134a, R507a, R449a, etc.
  • Shipment: by a 40’HC container
  • Product Detail

    Product Tags

    Intruduction

    Details description

    4 Pallet Vacuum Cooler (HXV-4P)01 (1)

    4 Pallet vacuum cooler, processing weight is 2000~2500kgs, 20mins fast cooling for leafy vegetables, easy touch screen operation.

    A vacuum cooling machine works by rapid evaporation of water from certain vegetables or other products under very low atmospheric pressures inside a vacuum chamber. Energy in the form of heat is required to change water from a liquid to a vapor state as in the boiling of water. At reduced atmospheric pressure in a vacuum chamber water boils at a lower than normal temperature.

    Advantages

    Details description

    1. The cooling time is very fast, generally only takes about 20 minutes, and any package with air holes can remove the heat of vegetables, fruits and flowers in the field, and the temperature of agricultural products can reach the central part! It takes 10-12 hours to cool in a cold storage!

    2. The water removed only accounts for 2~3% of the weight, so the weight is not reduced, and the treatment time is short, and local drying and deformation will not occur.

    3. It can inhibit or kill bacteria and microorganisms; No pollution to the product; Some small damages on the surface of fruits and vegetables with "thin layer drying effect" can be "cured" or will not continue to expand; Cooling is uniform, rapid, clean and pollution-free.

    4. Even for fruits and vegetables harvested in the rain, the surface moisture can be removed under vacuum, and vegetables washed with water such as carrots can also be removed from the surface moisture.

    5. Keep the original sensory and quality (color, aroma, taste and nutrition) of fruits and vegetables best! High market price is favorable for sales.

    6. Compared with fruits and vegetables that have not been pre-cooled, because of the long freshness retention time, they are suitable for long-term storage and long-distance transportation, and can extend the shelf life. Products that have been pre-cooled by vacuum can directly enter the supermarket without refrigeration, which has broad commercial prospects.

    logo ce iso

    Optional Functions

    Details description

    4 Pallet Vacuum Cooler (HXV-4P)01 (2)

    1. Nitrogen injection port for higher quality fresh care requirement;

    2. Hydro cooling (chilled water) for roots vegetable;

    3. Automatic transport conveyor.

    Huaxian Models

    Details description

    No.

    Model

    Pallet

    Process Capacity/Cycle

    Vacuum Chamber Size

    Power

    Cooling Style

    Voltage

    1

    HXV-1P

    1

    500~600kgs

    1.4*1.5*2.2m

    20kw

    Air

    380V~600V/3P

    2

    HXV-2P

    2

    1000~1200kgs

    1.4*2.6*2.2m

    32kw

    Air/Evaporative

    380V~600V/3P

    3

    HXV-3P

    3

    1500~1800kgs

    1.4*3.9*2.2m

    48kw

    Air/Evaporative

    380V~600V/3P

    4

    HXV-4P

    4

    2000~2500kgs

    1.4*5.2*2.2m

    56kw

    Air/Evaporative

    380V~600V/3P

    5

    HXV-6P

    6

    3000~3500kgs

    1.4*7.4*2.2m

    83kw

    Air/Evaporative

    380V~600V/3P

    6

    HXV-8P

    8

    4000~4500kgs

    1.4*9.8*2.2m

    106kw

    Air/Evaporative

    380V~600V/3P

    7

    HXV-10P

    10

    5000~5500kgs

    2.5*6.5*2.2m

    133kw

    Air/Evaporative

    380V~600V/3P

    8

    HXV-12P

    12

    6000~6500kgs

    2.5*7.4*2.2m

    200kw

    Air/Evaporative

    380V~600V/3P

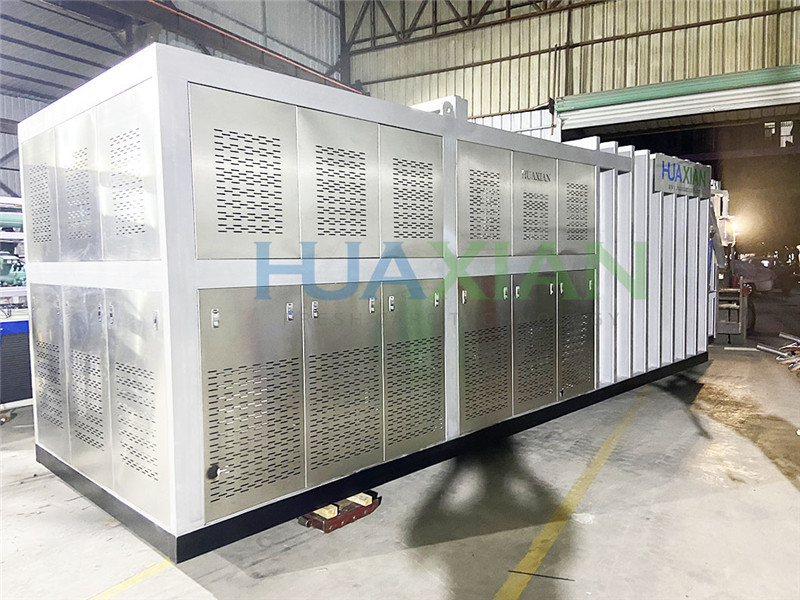

    Product Picture

    Details description

    4 Pallet Vacuum Cooler (HXV-4P)01 (3)
    4 Pallet Vacuum Cooler (HXV-4P)01 (4)
    4 Pallet Vacuum Cooler (HXV-4P)01 (5)

    Usage Case

    Details description

    Customer's Usage Case (1)
    Customer's Usage Case (6)
    Customer's Usage Case (5)
    Customer's Usage Case (3)
    Customer's Usage Case (2)

    Applicable Products

    Details description

    Huaxian Vacuum Cooler Is With Good Performance For Below Products

    Leaf Vegetable + Mushroom + Fresh Cut Flower + Berries

    Applicable Products02

    Certificate

    Details description

    CE Certificate

    FAQ

    Details description

    1. Q: What is the payment term?

    A: TT, 30% deposit before production,70% balance before shipment.

    2. Q: What is the delivery time?

    A: 1~ 2 month after Huaxian receives payment.

    3. Q: What is the package?

    A: Safety wrapping, or wood frame, etc.

    4. Q: How to install machines?

    A: We will tell you how to install or send an engineer to install according to customer's requirement (negotiation installation cost).

    5. Q: Can customer customize capacity?

    A: Yes, we design the vacuum cooler according to pallet size, loading height and processing weight.

    6. Q: How to operate the cooler?

    A: We set the parameters well when we are testing the vacuum cooler before shipment. After connecting the power supply, customer sets the target temperature and press start to run the cooler automatically.

    7. Q: Service life of the machine?

    A: The pre-cooler can be used for more than ten years or more after regular maintenance.

    8. Q: How to maintain the equipment?

    A: The interior of the chamber is cleaned daily, and other quarterly inspections are detailed in the operation manual.
